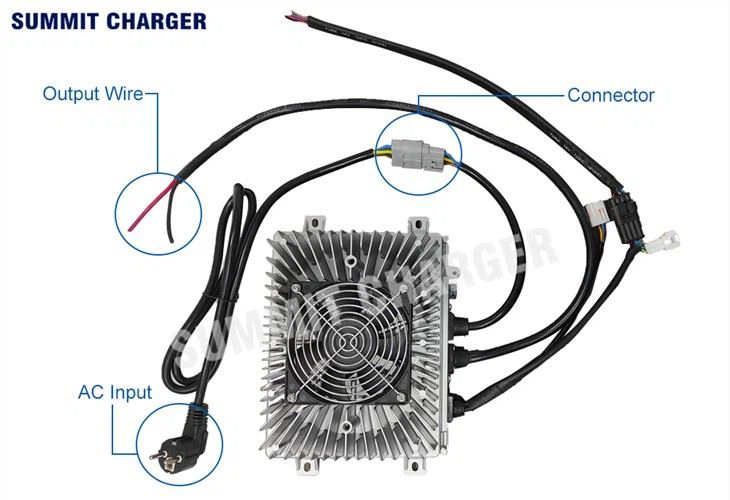

3.3kw Full Sealed Onboard Charger
✱Input Voltage Range: AC90-264V,
✱ Cov zis hluav taws xob: DC48V / 60V / 72V / 96V / 120V / 144V / 170V / 312V,
✱Input/Output Plug(yeem),
✱ Charging Indicator (yeem),
✱ CAN BUS los tsis yog (yeem),
✱ Loj: 294X210X111cm,
✱Net nyhav: 6kg (13lb),
Xa kev nug
Product Details of3.3kw Full Sealed Onboard Charger
3.3kw Full Sealed Onboard Charger tau tsim tshwj xeeb, los ntawm Summit Power Co., Ltd rau kev muab hluav taws xob rau lub tsheb fais fab lub roj teeb, raws li lub teb chaws tus qauv rau lub charger. Cov khoom no muaj qhov zoo ntawm tsis tsuas yog high efficiency, me me, siab stability, ntev lifespan, tab sis kuj siab tiv thaiv qib, thiab muaj kev ntseeg siab thiab ua tiav kev tiv thaiv muaj nuj nqi, thiab lwm yam. Nws yog ib qho zoo tagnrho them fais fab mov rau f electric tsheb. Lub charger no muaj cov cuab yeej siv hluav taws xob ua kom sov thiab tuaj yeem rov qab los ntawm kev tiv thaiv thermal. Cov txheej txheem ntim ntim puv puv thiab mus txog IP66/67 tiv thaiv qib kom tsis txhob muaj teeb meem hauv ib puag ncig nyuaj.
Specifications ntawm Full Sealed Onboard Charger
| Cov qauv | Input Voltage Range | Rated Tso zis Voltage | Max tso zis voltage | Max tso zis tam sim no |
| SMHC3-4842A | AC 90-264V | 48V | 66V | 42A |
| SMHC3-6040A | AC 90-264V | 60V | 82.5V | 40A |
| SMHC3-7240A | AC 90-264V | 72V | 99V | 40A |
| SMHC3-8440A | AC 90-264V | 80V | 110V | 40A |
| SMHC3-9632A | AC 90-264V | 96V | 132V | 32A |
| SMHC3-12025A | AC 90-264V | 120V | 165V | 25A |
| SMHC3-14423A | AC 90-264V | 144V | 198V | 23A |
| SMHC3-31210A | AC 90-264V | 312V | 440V | 10A |
Technical Parameters
| AC Input Wide Voltage Range | AC 90-264V |
| AC Input Frequency Range | 40-70HZ |
| Nrog APFC Function Power Factor | Ntau dua lossis sib npaug rau 0.98 |
| Soft Switching Technology Efficiency | Ntau dua lossis sib npaug li 93 feem pua |
| IP Qib | IP67 |
| Ua haujlwm kub | -40 degree ~ -60 degree |
| Cia Kub | -55 degree ~ -100 degree |
| CAN kev sib txuas lus muaj nuj nqi | Xaiv tau |
| 12V3A Cov Khoom Siv Hluav Taws Xob | Xaiv tau |
| LED Lub teeb qhia rau kev them nqi | Txuj |
| Suab nrov | Tsawg dua lossis sib npaug li 45dB |
| Zuag qhia tag nrho | 294 x 210 x 111 mm |
| Net nyhav | 5,9kq ua |
Kev tiv thaiv muaj nuj nqi
 |  |
Daim ntawv thov ntawm 3.3kw Full Sealed Onboard Charger
Siv rau cov tsheb fais fab: tsheb saib, tsheb sib tw, tsheb golf, tsheb saib xyuas, khoom siv hluav taws xob tu, tshuab ntxhua khaub ncaws, nyom mower;
Hais txog Summit Charger
 |
 |
Peb Qhov Kev Pabcuam
(1) Ntim
1 charger 1 lub thawv, suav nrog cov npe khoom, cov khoom lag luam tus lej, cov khoom lag luam, hom khoom, tus lej ntau lawm thiab lub npe ntawm cov chaw tsim khoom; Hauv lub thawv ntim khoom, nrog rau cov ntaub ntawv kev tshaj lij, nws suav nrog cov npe ntim khoom, daim ntawv pov thawj zoo, cov khoom specification.
(2) Kev thauj mus los
Haum rau tsheb, nkoj, dav hlau, tsheb thauj mus los. Cov khoom yuav tsum tau tiv thaiv tshav ntuj thiab noo noo thiab nyob rau hauv ib tug civilized tsheb thauj mus los.
(3) Cia
Cov khoom yuav tsum muab khaws cia rau hauv lub thawv ntim khoom thaum nws tsis siv thiab khaws cia rau hauv 5degreerau 40degreehuv si, qhuav thiab zoo-ventilated ib puag ncig. Nws yuav tsum tsis txhob muab khaws cia ua ke nrog tshuaj, kua qaub thiab alkali tshuaj thiab lwm yam. Yuav tsum tsis txhob khaws cia rau hauv lub hnub, hluav taws, dej thiab tsis txhob khaws cia nrog cov khoom corrosive. Lub sijhawm khaws cia yog 2 xyoos (los ntawm cov khoom muag hnub tim ntawm lub Hoobkas). Tom qab 24 lub hlis ntawm kev khaws cia, cov khoom yuav tsum tseem ua raws li cov kev cai ntawm cov qauv tsim nyog.
